一、基础概念

• RSA加密算法是最常用的非对称加密算法，目前普遍认为是最优秀的方案之一，关于RSA的数学原理和方法，这里不做说明，感兴趣的可以自行了解下。本文主要介绍RSA的一些常用的基础知识

• RSA分为公钥和私钥，生成时会需要传入参数，秘钥位数和秘钥格式，秘钥位数有512bit、1024bit、2048bit等，通常使用的是1024bit，私钥格式分为PKCS8和PKCS1，其中PKCS8为java语言中使用的格式，PKCS1为iOS相关语言中使用的格式。

• 通常生成的秘钥会保存在.pem格式的文件中，使用文本编辑器或者代码编辑器打开，可以查看到保存的值，如果是按1024bit取模，PKCS1格式的私钥长度应该是824（包含回车），如果是PKCS8的格式的密钥长度为861

• 通常RSA有两种用法，公钥加密私钥解密和私钥签名公钥验签，加密是为了数据保密，签名是为了防恶意攻击，例如防止别人模拟我们的客户端对我们的服务器进行攻击，导致服务器瘫痪等

二、一些在线网站

有一些网站可以在线生成RSA秘钥，例如http://web.chacuo.net/netrsakeypair，这些网站可以便捷的生成私钥，并自动得出相应的公钥，以及能在线转换格式，加密解密等

三、命令行生成命令

我们先了解下一个软件包OpenSSL，OpenSSL是为网络通信提供安全及数据完整性的一种安全协议，囊括了主要的密码算法、常用的密钥和证书封装管理功能以及SSL协议，并提供了丰富的应用程序供测试或其它目的使用。LibreSSL是OpenSSL加密软件库的一个分支。在OpenSSL爆出安全漏洞之后，于2014年4月创立，目标是重构OpenSSL的代码，以提供一个更安全的替代品。所以通过在电脑上安装OpenSSL或者LibreSSL后，即可通过相关的命令行生成秘钥。mac电脑已自带LibreSSL，如果没有，可以寻找相关的安装方法，此处不再扩展

1、基础生成命令

1. 生成模长为1024bit的私钥

$ openssl genrsa -out /xx/xx/private_pkcs1.pem 1024

private_pkcs1.pem前为本地路径，pem文件会生成到制定目录，长度824，此命令行生成的为PKCS1格式的私钥，如下

-----BEGIN RSA PRIVATE KEY-----
MIICXgIBAAKBgQDWa6g5OgPyB5xCkvEIitA1gKOBoQi21nAVJL7iVMqkA2MrhmUl
ZonITpqMW3syTtaksMualat1CmqJRQaDn+UVe0u2Wgtvvu8KaDdbDa6Tyq6S2K89
GI2l/AzouLE06daaHDh3qjtwNmEDqsK7mEcSPddIKaIOHZ7bKzOkbYnGEwIDAQAB
AoGBAIiOY8KeaijYI/JaNtuj3FpWpMtHzY70Hsm4b0EhkzTFW4E6xGv/U7yYIuFE
2b7+asDUP7chnuKZUaQ+q5lkWbYcKsSWORgGBUeYUOVoU9SuTp65oFKkc9AOtaxz
VavX536Y1VRtT+b8mB++gZwp5cZHUbJTj4BPSKH7IJawKskRAkEA7jA4c+I3ZfFD
koOl41x3cvwH+xQLi6vpL6Gw3/muJrc6mtdZbcuXwjMYlac++mXPTUt1K4b1sUmG
G3qwnkUjXwJBAOZ0b2fZhRhsDzNFihnD1PXGNl56FVG3G0aWZzQIHQX1DIE+sG4k
CJxrqxTnHWc+O2ODPU2PbJUN0fcpEuoDbc0CQQC9LpWYDUP89yy5cVDQDgBd1qos
FRa6f/d9Ooq2yqQ04fFtTMAeAcfumhDbxHO0BCsr9FQDF3WLs58NslwXyUg3AkBg
GK1b4JhfVq//8T9k/wQOeFizjLTXHkOBa7YdPETd9xD/0+Q+CUiN8Veln7njE1Aw
bslhTi04+kpThg0dB9EBAkEAiWIlUGra4M5q7u+FWbgtcJRKjMX6LIlsB1UiFHba
auSSQGwP+LMHVYDaWljzcPO/c5/MZbIDmGCZsDeImvSdMQ==
-----END RSA PRIVATE KEY-----

2. PKCS1和PKCS8互相转换

// PKCS1私钥转换为PKCS8，java语言使用的是PKCS8
$ openssl pkcs8 -topk8 -inform PEM -in /xx/xx/private_pkcs1.pem -outform pem -nocrypt -out /xx/xx/private_pkcs8.pem

// PKCS8私钥转换为PKCS1
$ openssl rsa -in /xx/xx/private_pkcs8.pem -out /xx/xx/private_pkcs1.pem

同样文件名之前为本地路径，生成到对应的路径下，生成的PKCS8格式私钥如下

-----BEGIN PRIVATE KEY-----
MIICeAIBADANBgkqhkiG9w0BAQEFAASCAmIwggJeAgEAAoGBANZrqDk6A/IHnEKS
8QiK0DWAo4GhCLbWcBUkvuJUyqQDYyuGZSVmichOmoxbezJO1qSwy5qVq3UKaolF
BoOf5RV7S7ZaC2++7wpoN1sNrpPKrpLYrz0YjaX8DOi4sTTp1pocOHeqO3A2YQOq
wruYRxI910gpog4dntsrM6RticYTAgMBAAECgYEAiI5jwp5qKNgj8lo226PcWlak
y0fNjvQeybhvQSGTNMVbgTrEa/9TvJgi4UTZvv5qwNQ/tyGe4plRpD6rmWRZthwq
xJY5GAYFR5hQ5WhT1K5OnrmgUqRz0A61rHNVq9fnfpjVVG1P5vyYH76BnCnlxkdR
slOPgE9IofsglrAqyRECQQDuMDhz4jdl8UOSg6XjXHdy/Af7FAuLq+kvobDf+a4m
tzqa11lty5fCMxiVpz76Zc9NS3UrhvWxSYYberCeRSNfAkEA5nRvZ9mFGGwPM0WK
GcPU9cY2XnoVUbcbRpZnNAgdBfUMgT6wbiQInGurFOcdZz47Y4M9TY9slQ3R9ykS
6gNtzQJBAL0ulZgNQ/z3LLlxUNAOAF3WqiwVFrp/9306irbKpDTh8W1MwB4Bx+6a
ENvEc7QEKyv0VAMXdYuznw2yXBfJSDcCQGAYrVvgmF9Wr//xP2T/BA54WLOMtNce
Q4Frth08RN33EP/T5D4JSI3xV6WfueMTUDBuyWFOLTj6SlOGDR0H0QECQQCJYiVQ
atrgzmru74VZuC1wlEqMxfosiWwHVSIUdtpq5JJAbA/4swdVgNpaWPNw879zn8xl
sgOYYJmwN4ia9J0x
-----END PRIVATE KEY-----

3. 生成公钥

RSA公钥是由私钥中生成的，公钥不区分格式，PKCS1和PKCS8都能生成公钥，生成结果一致

$ openssl rsa -in /xx/xx/private_pkcs1.pem -pubout -out /xx/xx/public.pem

生成结果如下

-----BEGIN PUBLIC KEY-----
MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQDWa6g5OgPyB5xCkvEIitA1gKOB
oQi21nAVJL7iVMqkA2MrhmUlZonITpqMW3syTtaksMualat1CmqJRQaDn+UVe0u2
Wgtvvu8KaDdbDa6Tyq6S2K89GI2l/AzouLE06daaHDh3qjtwNmEDqsK7mEcSPddI
KaIOHZ7bKzOkbYnGEwIDAQAB
-----END PUBLIC KEY-----

以上为生成RSA秘钥基本的操作，所有的秘钥文件均以.pem格式存在，可以直接使用文本编辑器读取其中的秘钥字符串，秘钥字符串为Base64格式，Android和iOS在使用时都可以直接使用文件或者字符串

2、iOS数字证书

.pem格式文件已能正常使用，iOS系统也可以直接使用文件中的秘钥字符串，为了进一步保证安全性，iOS系统中可以对公钥和私钥进行进一步签名，做成数字证书的形式，.der格式文件存放，.p12格式的文件存放的是私钥，.der和.p12文件均为二进制文件，无法查看

1. 生成证书请求文件.csr

$ openssl req -new -key /xxx/xxx/private_pkcs1.pem -out /xxx/xxx/rsa_cert.csr

这一步会提示输入国家、省份等信息，可酌情填写

2. 生成证书.crt，并设置有效时间1年

$ openssl x509 -req -days 365 -in /xxx/xxx/rsa_cert.csr -signkey /xxx/xxx/private_pkcs1.pem -out /xxx/xxx/rsa_cert.crt

3. 导出iOS使用的公钥文件.der

$ openssl x509 -outform der -in /xxx/xxx/rsa_cert.crt -out /xxx/xxx/public.der

4. 导出iOS使用的私钥文件.p12

$ openssl pkcs12 -export -out /xxx/xxx/private.p12 -inkey /xxx/xxx/private_pkcs1.pem -in /xxx/xxx/rsa_cert.crt

这一步会提示给私钥证书.p12设置证书密码，输入即可

四、iOS代码

1、OpenSSL开源库

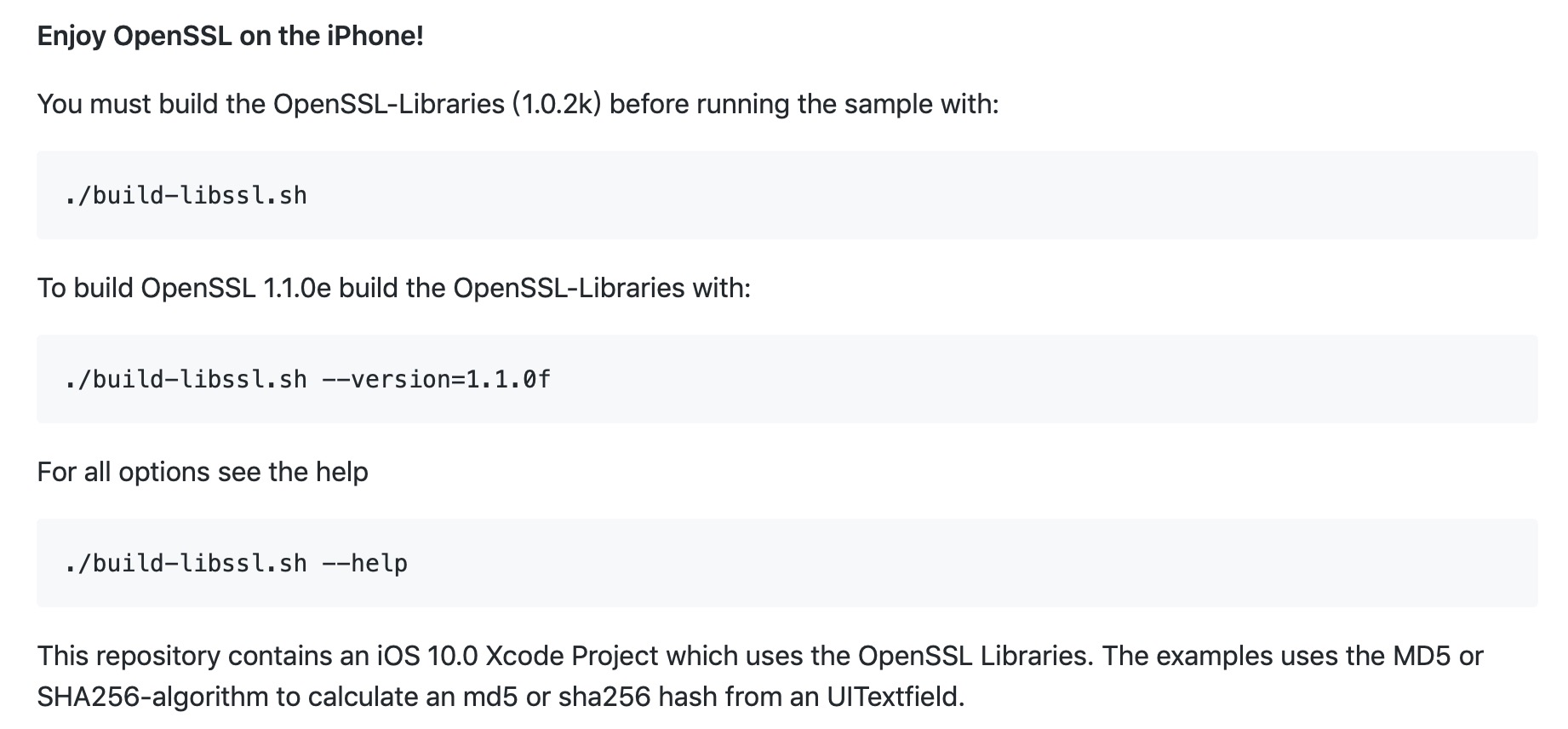

github上有OpenSSL的开源代码，但是工程里面无法直接引入，此处推荐另一个开源代码OpenSSL-for-iPhone，在README中作者提供了相关的编译方法

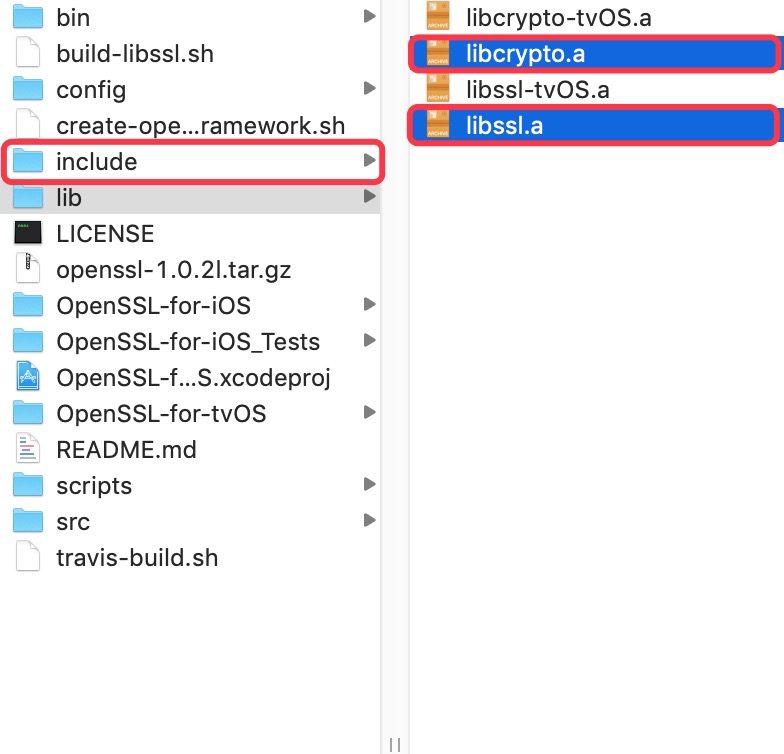

编译完成后，找到OpenSSL-for-iPhone工程里面编译成功的.a文件，libcrypto.a和libssl.a，还有文件夹include

导入项目工程中，并把include文件夹添加到Build Setting中的Header Search Paths中，再检查Library Search Paths中是否能引用到.a文件，具体代码如下

#import <Foundation/Foundation.h>
#import <openssl/rsa.h>

NS_ASSUME_NONNULL_BEGIN

typedef enum : NSUInteger {
    OpenSSL_RSA_SignType_MD5,
    OpenSSL_RSA_SignType_SHA1,
    OpenSSL_RSA_SignType_SHA224,
    OpenSSL_RSA_SignType_SHA256,
    OpenSSL_RSA_SignType_SHA384,
    OpenSSL_RSA_SignType_SHA512,
} OpenSSL_RSA_SignType;

@interface OpenSSLWrapper : NSObject

/**
 生成一对秘钥

 @param keySize 512、1024、2048
 @param publicKey 公钥内存地址
 @param privateKey 私钥内存地址
 @return 是否成功生成
 */
+ (BOOL)generateKeyPairWithKeySize:(int)keySize publicKey:(RSA *_Nullable*_Nullable)publicKey privateKey:(RSA *_Nullable*_Nullable)privateKey;

/**
 公钥加密

 @param publicKey 公钥
 @param plainString 源数据
 @return 加密后数据
 */
+ (NSString *)opensslEncryptWithPublicKey:(RSA *)publicKey plainString:(NSString *)plainString;

/**
 私钥解密

 @param privateKey 私钥
 @param encryptString 加密后数据
 @return 源数据
 */
+ (NSString *)opensslDecryptWithPrivateKey:(RSA *)privateKey encryptString:(NSString *)encryptString;

/**
 私钥签名

 @param privateKey 私钥
 @param signType 签名算法
 @param plainString 源数据
 @return 签名后数据
 */
+ (NSString *)signWithPrivateKey:(RSA *)privateKey signType:(OpenSSL_RSA_SignType)signType plainString:(NSString *)plainString;

/**
 公钥验证签名

 @param publicKey 公钥
 @param signType 签名算法
 @param plainString 源数据
 @param signString 签名后数据
 @return 是否验证成功
 */
+ (BOOL)verifyWithPublicKey:(RSA *)publicKey signType:(OpenSSL_RSA_SignType)signType plainString:(NSString *)plainString signString:(NSString *)signString;

// RSA转base64
+ (NSString *)base64StringFromPublicRSAKey:(RSA *)rsaKey;
+ (NSString *)base64StringFromPrivateRSAKey:(RSA *)rsaKey;
// base64转RSA秘钥
+ (RSA *)publicRSAKeyFromBase64String:(NSString *)keyString;
+ (RSA *)privateRSAKeyFromBase64String:(NSString *)keyString;

@end

NS_ASSUME_NONNULL_END

#import "OpenSSLWrapper.h"
#import <openssl/pem.h>
#import <CommonCrypto/CommonCrypto.h>

@implementation OpenSSLWrapper

/**
 生成一对秘钥
 */
+ (BOOL)generateKeyPairWithKeySize:(int)keySize publicKey:(RSA *_Nullable*_Nullable)publicKey privateKey:(RSA *_Nullable*_Nullable)privateKey {
    if (keySize == 512 || keySize == 1024 || keySize == 2048) {
        RSA *rsa = RSA_generate_key(keySize, RSA_F4, NULL, NULL);
        if (rsa) {
            *privateKey = RSAPrivateKey_dup(rsa);
            *publicKey = RSAPublicKey_dup(rsa);
            if (*privateKey && *publicKey) {
                return YES;
            }
        }
    }
    return NO;
}

/**
 公钥加密
 */
+ (NSString *)opensslEncryptWithPublicKey:(RSA *)publicKey plainString:(NSString *)plainString {
    // 参数转data
    NSData *plainData = [plainString dataUsingEncoding:NSUTF8StringEncoding];
    NSMutableData *encryptData = [NSMutableData data];
    // 分段加密，计算分段长度
    int cipherBufferSize = RSA_size(publicKey);
    NSUInteger totalSize = plainData.length;

    int blockSize = cipherBufferSize - RSA_PKCS1_PADDING_SIZE;
    int blockCount = ceil(totalSize * 1.f / blockSize);

    // 遍历获取每个分段数据
    for (int i = 0; i < blockCount; i++) {
        // 取出当前分段数据
        NSData *blockData;
        if (i < (blockCount - 1)) {
            blockData = [plainData subdataWithRange:NSMakeRange(i * blockSize, blockSize)];
        } else {
            blockData = [plainData subdataWithRange:NSMakeRange(i * blockSize, totalSize - i * blockSize)];
        }
        // 申请对应内存，公钥长度
        uint8_t *cipherBuffer = malloc(cipherBufferSize * sizeof(uint8_t));
        memset((void *)cipherBuffer, 0x0, cipherBufferSize);
        // 加密当前分段数据
        int result = RSA_public_encrypt((int)blockData.length, (const unsigned char *)blockData.bytes, (unsigned char *)cipherBuffer, publicKey, RSA_PKCS1_PADDING);
        if (result < 0) {
            // 加密失败，释放内存
            if (cipherBuffer) {
                free(cipherBuffer);
            }
            return nil;
        }
        NSData *cipher = [[NSData alloc] initWithBytes:cipherBuffer length:result];
        [encryptData appendData:cipher];
        if (cipherBuffer) {
            free(cipherBuffer);
        }
    }
    // 转base64
    NSString *encryptString = [encryptData base64EncodedStringWithOptions:0];
    return encryptString;
}

/**
 私钥解密
 */
+ (NSString *)opensslDecryptWithPrivateKey:(RSA *)privateKey encryptString:(NSString *)encryptString {
    // 参数转data
    NSData *encryptData = [[NSData alloc] initWithBase64EncodedString:encryptString options:NSDataBase64DecodingIgnoreUnknownCharacters];
    NSMutableData *outputPlainData = [NSMutableData data];
    // 分段解密，计算分段长度
    int cipherBufferSize = RSA_size(privateKey);
    NSUInteger totalSize = encryptData.length;

    int blockSize = cipherBufferSize;
    int blockCount = ceil(totalSize * 1.f / blockSize);

    // 遍历获取每个分段数据
    for (int i = 0; i < blockCount; i++) {
        // 取出当前分段数据
        NSData *blockData;
        if (i < (blockCount - 1)) {
            blockData = [encryptData subdataWithRange:NSMakeRange(i * blockSize, blockSize)];
        } else {
            blockData = [encryptData subdataWithRange:NSMakeRange(i * blockSize, totalSize - i * blockSize)];
        }
        // 申请对应内存
        uint8_t *keyBuffer = malloc(cipherBufferSize * sizeof(uint8_t));
        memset((void *)keyBuffer, 0x0, cipherBufferSize);
        // 解密当前分段数据
        int result = RSA_private_decrypt(cipherBufferSize, (const unsigned char *)blockData.bytes, (unsigned char *)keyBuffer, privateKey, RSA_PKCS1_PADDING);
        if (result < 0) {
            // 解密失败，释放内存
            if (keyBuffer) {
                free(keyBuffer);
            }
            return nil;
        }
        NSData *key = [[NSData alloc] initWithBytes:keyBuffer length:result];
        [outputPlainData appendData:key];
        if (keyBuffer) {
            free(keyBuffer);
        }
    }
    NSString *outputPlainString = [[NSString alloc] initWithData:outputPlainData encoding:NSUTF8StringEncoding];
    return outputPlainString;
}

/**
 私钥签名
 */
+ (NSString *)signWithPrivateKey:(RSA *)privateKey signType:(OpenSSL_RSA_SignType)signType plainString:(NSString *)plainString {
    NSData *plainData = [plainString dataUsingEncoding:(NSUTF8StringEncoding)];

    int type;
    NSData *digestData = nil;
    switch (signType) {
            case OpenSSL_RSA_SignType_MD5:
        {
            unsigned char digest[CC_MD5_DIGEST_LENGTH];
            CC_MD5([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_MD5_DIGEST_LENGTH];
            type = NID_md5;
        }
            break;
            case OpenSSL_RSA_SignType_SHA1:
        {
            unsigned char digest[CC_SHA1_DIGEST_LENGTH];
            CC_SHA1([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA1_DIGEST_LENGTH];
            type = NID_sha1;
        }
            break;
            case OpenSSL_RSA_SignType_SHA224:
        {
            unsigned char digest[CC_SHA224_DIGEST_LENGTH];
            CC_SHA224([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA224_DIGEST_LENGTH];
            type = NID_sha224;
        }
            break;
            case OpenSSL_RSA_SignType_SHA256:
        {
            unsigned char digest[CC_SHA256_DIGEST_LENGTH];
            CC_SHA256([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA256_DIGEST_LENGTH];
            type = NID_sha256;
        }
            break;
            case OpenSSL_RSA_SignType_SHA384:
        {
            unsigned char digest[CC_SHA384_DIGEST_LENGTH];
            CC_SHA384([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA384_DIGEST_LENGTH];
            type = NID_sha384;
        }
            break;
            case OpenSSL_RSA_SignType_SHA512:
        {
            unsigned char digest[CC_SHA512_DIGEST_LENGTH];
            CC_SHA512([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA512_DIGEST_LENGTH];
            type = NID_sha512;
        }
            break;

        default:
            break;
    }

    if (digestData) {
        int signedHashBytesSize = RSA_size(privateKey);

        uint8_t *signedHashBytes = malloc(signedHashBytesSize * sizeof(uint8_t));
        memset((void *)signedHashBytes, 0x0, signedHashBytesSize);


        unsigned int siglen = 0;
        int result = RSA_sign(type, (const unsigned char *)digestData.bytes, (unsigned int)digestData.length, (unsigned char *)signedHashBytes, &siglen, privateKey);
        if (result == 1) {
            NSData *signedHash = [NSData dataWithBytes:signedHashBytes length:siglen];
            if (signedHashBytes) {
                free(signedHashBytes);
            }
            NSString *signString = [signedHash base64EncodedStringWithOptions:0];
            return signString;
        }
        if (signedHashBytes) {
            free(signedHashBytes);
        }
        return nil;
    } else {
        return nil;
    }
}

/**
 公钥验证签名
 */
+ (BOOL)verifyWithPublicKey:(RSA *)publicKey signType:(OpenSSL_RSA_SignType)signType plainString:(NSString *)plainString signString:(NSString *)signString {

    NSData *plainData = [plainString dataUsingEncoding:(NSUTF8StringEncoding)];
    NSData *signData = [[NSData alloc] initWithBase64EncodedString:signString options:NSDataBase64DecodingIgnoreUnknownCharacters];

    int type;
    NSData *digestData = nil;
    switch (signType) {
            case OpenSSL_RSA_SignType_MD5:
        {
            unsigned char digest[CC_MD5_DIGEST_LENGTH];
            CC_MD5([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_MD5_DIGEST_LENGTH];
            type = NID_md5;
        }
            break;
            case OpenSSL_RSA_SignType_SHA1:
        {
            unsigned char digest[CC_SHA1_DIGEST_LENGTH];
            CC_SHA1([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA1_DIGEST_LENGTH];
            type = NID_sha1;
        }
            break;
            case OpenSSL_RSA_SignType_SHA224:
        {
            unsigned char digest[CC_SHA224_DIGEST_LENGTH];
            CC_SHA224([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA224_DIGEST_LENGTH];
            type = NID_sha224;
        }
            break;
            case OpenSSL_RSA_SignType_SHA256:
        {
            unsigned char digest[CC_SHA256_DIGEST_LENGTH];
            CC_SHA256([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA256_DIGEST_LENGTH];
            type = NID_sha256;
        }
            break;
            case OpenSSL_RSA_SignType_SHA384:
        {
            unsigned char digest[CC_SHA384_DIGEST_LENGTH];
            CC_SHA384([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA384_DIGEST_LENGTH];
            type = NID_sha384;
        }
            break;
            case OpenSSL_RSA_SignType_SHA512:
        {
            unsigned char digest[CC_SHA512_DIGEST_LENGTH];
            CC_SHA512([plainData bytes], (unsigned int)[plainData length], digest);
            digestData = [NSData dataWithBytes:digest length:CC_SHA512_DIGEST_LENGTH];
            type = NID_sha512;
        }
            break;

        default:
            break;
    }

    if (digestData) {
        int result = RSA_verify(type, (const unsigned char *)digestData.bytes, (unsigned int)digestData.length, (const unsigned char *)signData.bytes, (unsigned int)signData.length, publicKey);
        if (result == 1) {
            return YES;
        }
        return NO;
    } else {
        return NO;
    }
}

/**
 RSA转base64
 */
+ (NSString *)base64StringFromPublicRSAKey:(RSA *)rsaKey {
    BIO *bio = BIO_new(BIO_s_mem());
    PEM_write_bio_RSA_PUBKEY(bio, rsaKey);
    BUF_MEM *buf;
    BIO_get_mem_ptr(bio, &buf);
    // data 后面可能会有有脏数据
    NSString *pemString = [[NSString stringWithFormat:@"%s", buf->data] substringToIndex:buf->length];
    BIO_set_close(bio, BIO_NOCLOSE);
    BIO_free(bio);
    NSString *base64 = [[pemString componentsSeparatedByString:@"-----"] objectAtIndex:2];
    return base64;
}
+ (NSString *)base64StringFromPrivateRSAKey:(RSA *)rsaKey {
    BIO *bio = BIO_new(BIO_s_mem());
    PEM_write_bio_RSAPrivateKey(bio, rsaKey, NULL, NULL, 0, NULL, NULL);
    BUF_MEM *buf;
    BIO_get_mem_ptr(bio, &buf);
    // data 后面可能会有有脏数据
    NSString *pemString = [[NSString stringWithFormat:@"%s", buf->data] substringToIndex:buf->length];
    BIO_set_close(bio, BIO_NOCLOSE);
    BIO_free(bio);
    NSString *base64 = [[pemString componentsSeparatedByString:@"-----"] objectAtIndex:2];
    return base64;
}

/**
 base64转RSA秘钥
 */
+ (RSA *)publicRSAKeyFromBase64String:(NSString *)keyString {
    NSMutableString *result = [NSMutableString string];
    [result appendString:@"-----BEGIN PUBLIC KEY-----\n"];
    int count = 0;
    for (int i = 0; i < keyString.length; i++) {
        unichar c = [keyString characterAtIndex:i];
        if (c == '\n' || c == '\r') {
            continue;
        }
        [result appendFormat:@"%c", c];
        count++;
        if (count == 64) {
            [result appendString:@"\n"];
            count = 0;
        }
    }
    [result appendString:@"\n-----END PUBLIC KEY-----"];

    const char *buffer = [result UTF8String];
    BIO *bio = BIO_new_mem_buf(buffer, (int)strlen(buffer));
    RSA *publicKey = PEM_read_bio_RSA_PUBKEY(bio, NULL, NULL, NULL);
    BIO_free_all(bio);
    return publicKey;
}

+ (RSA *)privateRSAKeyFromBase64String:(NSString *)keyString {
    NSMutableString *result = [NSMutableString string];
    [result appendString:@"-----BEGIN RSA PRIVATE KEY-----\n"];
    int count = 0;
    for (int i = 0; i < keyString.length; i++) {
        unichar c = [keyString characterAtIndex:i];
        if (c == '\n' || c == '\r') {
            continue;
        }
        [result appendFormat:@"%c", c];
        count++;
        if (count == 64) {
            [result appendString:@"\n"];
            count = 0;
        }
    }
    [result appendString:@"\n-----END RSA PRIVATE KEY-----"];

    const char *buffer = [result UTF8String];
    BIO *bio = BIO_new_mem_buf(buffer, (int)strlen(buffer));
    RSA *privateKey = PEM_read_bio_RSAPrivateKey(bio, NULL, NULL, NULL);
    BIO_free_all(bio);
    return privateKey;
}

@end

方法调用示例：

#import "ViewController.h"
#import "OpenSSLWrapper.h"

@interface ViewController () {
    RSA *_publicKey;
    RSA *_privateKey;
}
@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    // Do any additional setup after loading the view.

    _publicKey = NULL;
    _privateKey = NULL;
    [OpenSSLWrapper generateKeyPairWithKeySize:1024 publicKey:&_publicKey privateKey:&_privateKey];
    NSString *publicKeyBase64 = [OpenSSLWrapper base64StringFromPublicRSAKey:_publicKey];
    NSLog(@"公钥：%@", publicKeyBase64);
    NSString *privateKeyBase64 = [OpenSSLWrapper base64StringFromPrivateRSAKey:_privateKey];
    NSLog(@"私钥：%@", privateKeyBase64);

    NSString *plainString = @"123qweQWE测试@#%&*";

    NSString *encryptedString = [OpenSSLWrapper opensslEncryptWithPublicKey:_publicKey plainString:plainString];
    NSLog(@"%@", [NSString stringWithFormat:@"公钥加密：%@", encryptedString]);

    NSString *outputPlainString = [OpenSSLWrapper opensslDecryptWithPrivateKey:_privateKey encryptString:encryptedString];
    NSLog(@"%@", [NSString stringWithFormat:@"私钥解密：%@", outputPlainString]);

    NSString *signString = [OpenSSLWrapper signWithPrivateKey:_privateKey signType:(OpenSSL_RSA_SignType_SHA1) plainString:plainString];
    NSLog(@"%@", [NSString stringWithFormat:@"私钥签名：%@", signString]);

    BOOL verify = [OpenSSLWrapper verifyWithPublicKey:_publicKey signType:(OpenSSL_RSA_SignType_SHA1) plainString:plainString signString:signString];
    NSLog(@"%@", [NSString stringWithFormat:@"验证 %@", verify ? @"通过" : @"不通过"]);
}

@end

2、苹果官方Security库

苹果官方Security库也集成了相应的方法，在iOS 2中便已经提供，官网也提供了调用示例代码，苹果系统打包和发布均采用了RSA的操作

注：部分新的方法在`iOS 10.0`系统后提供

#import <Foundation/Foundation.h>
#import <Security/Security.h>

NS_ASSUME_NONNULL_BEGIN

@interface SecKeyWrapper : NSObject <NSCopying, NSMutableCopying>

/**
 单例方法
 */
+ (instancetype)shareInstance;

/**
 生成秘钥

 @param keySize 512、1024、2048
 @param publicKeyRef 公钥内存地址
 @param privateKeyRef 公钥内存地址
 @return 是否成功生成
 */
- (BOOL)generateKeyPair:(NSUInteger)keySize publicKey:(SecKeyRef _Nullable *_Nonnull)publicKeyRef privateKey:(SecKeyRef _Nullable *_Nonnull)privateKeyRef;

/**
 公钥加密

 @param publicKey 公钥
 @param plainString 源数据
 @return 加密后数据
 */
- (NSString *)secKeyEncryptWithPublicKey:(SecKeyRef)publicKey plainString:(NSString *)plainString;

/**
 私钥解密

 @param privateKey 私钥
 @param encryptString 加密后数据
 @return 源数据
 */
- (NSString *)secKeyDecryptWithPrivateKey:(SecKeyRef)privateKey encryptString:(NSString *)encryptString;

/**
 私钥签名

 @param privateKey 私钥
 @param secPadding 算法类型
 @param plainString 源数据
 @return 签名后数据
 */
- (NSString *)signWithPrivateSecKey:(SecKeyRef)privateKey secPadding:(SecPadding)secPadding plainString:(NSString *)plainString;

/**
 公钥验证签名

 @param publicKey 公钥
 @param secPadding 算法类型
 @param plainString 源数据
 @param signString 签名后数据
 @return 是否验证成功
 */
- (BOOL)verifyWithPublicSecKey:(SecKeyRef)publicKey secPadding:(SecPadding)secPadding plainString:(NSString *)plainString signString:(NSString *)signString;

#if __IPHONE_OS_VERSION_MAX_ALLOWED >= __IPHONE_10_0

/**
 SecKeyRef转base64
 */
- (NSString *)base64StringFromSecKey:(SecKeyRef)secKey;

/**
 base64转SecKeyRef
 */
- (SecKeyRef)publicSecKeyFromBase64String:(NSString *)keyString;
- (SecKeyRef)privateSecKeyFromBase64String:(NSString *)keyString;

#endif

@end

NS_ASSUME_NONNULL_END

#import "SecKeyWrapper.h"
#import <CommonCrypto/CommonDigest.h>
#import <CommonCrypto/CommonCryptor.h>
#import <Security/SecKey.h>

@interface SecKeyWrapper () {
    NSData *_publicTag;
    NSData *_privateTag;
}

@end

@implementation SecKeyWrapper

static SecKeyWrapper *instance = nil;


+ (instancetype)shareInstance {
    static dispatch_once_t onceToken;
    dispatch_once(&onceToken, ^{
        instance = [[super allocWithZone:NULL] init];
    });
    return instance;
}

- (instancetype)init {
    self = [super init];
    if (self) {
        // 单例的内部逻辑
        // 初始化tag标记，此字符串长度固定，内容可更改
        _privateTag = [@"com.ghtest.rsasecprivatekey" dataUsingEncoding:NSUTF8StringEncoding];
        _publicTag = [@"com.ghtest.rsasecpublickey" dataUsingEncoding:NSUTF8StringEncoding];

    }
    return self;
}

+ (instancetype)allocWithZone:(struct _NSZone *)zone {
    return [SecKeyWrapper shareInstance];
}

- (id)copyWithZone:(NSZone *)zone {
    return [SecKeyWrapper shareInstance];
}

- (id)mutableCopyWithZone:(NSZone *)zone {
    return [SecKeyWrapper shareInstance];
}

/**
 生成秘钥
 */
- (BOOL)generateKeyPair:(NSUInteger)keySize publicKey:(SecKeyRef _Nullable *_Nonnull)publicKeyRef privateKey:(SecKeyRef _Nullable *_Nonnull)privateKeyRef {

    if (keySize == 512 || keySize == 1024 || keySize == 2048) {
        // 首先删除旧的秘钥
        OSStatus sanityCheck = noErr;
        NSMutableDictionary *queryPublicKey = [[NSMutableDictionary alloc] init];
        NSMutableDictionary *queryPrivateKey = [[NSMutableDictionary alloc] init];
        // 设置公钥队列
        [queryPublicKey setObject:(id)kSecClassKey forKey:(id)kSecClass];
        [queryPublicKey setObject:_publicTag forKey:(id)kSecAttrApplicationTag];
        [queryPublicKey setObject:(id)kSecAttrKeyTypeRSA forKey:(id)kSecAttrKeyType];
        // 设置私钥队列
        [queryPrivateKey setObject:(id)kSecClassKey forKey:(id)kSecClass];
        [queryPrivateKey setObject:_privateTag forKey:(id)kSecAttrApplicationTag];
        [queryPrivateKey setObject:(id)kSecAttrKeyTypeRSA forKey:(id)kSecAttrKeyType];

        // 删除私钥
        sanityCheck = SecItemDelete((CFDictionaryRef)queryPrivateKey);
        if (sanityCheck == noErr || sanityCheck == errSecItemNotFound) {

        } else {
            NSLog(@"Error removing private key, OSStatus == %d.", sanityCheck);
        }
        // 删除公钥
        sanityCheck = SecItemDelete((CFDictionaryRef)queryPublicKey);
        if (sanityCheck == noErr || sanityCheck == errSecItemNotFound) {

        } else {
            NSLog(@"Error removing public key, OSStatus == %d.", sanityCheck);
        }

        // Container dictionaries.
        NSMutableDictionary *keyPairAttr = [[NSMutableDictionary alloc] init];
        NSMutableDictionary *publicKeyAttr = [[NSMutableDictionary alloc] init];
        NSMutableDictionary *privateKeyAttr = [[NSMutableDictionary alloc] init];
        // Set top level dictionary for the keypair.
        [keyPairAttr setObject:(id)kSecAttrKeyTypeRSA forKey:(id)kSecAttrKeyType];
        [keyPairAttr setObject:[NSNumber numberWithUnsignedInteger:keySize] forKey:(id)kSecAttrKeySizeInBits];
        // 公钥字典，其他参数SecKey.h
        [publicKeyAttr setObject:[NSNumber numberWithBool:YES] forKey:(id)kSecAttrIsPermanent];
        [publicKeyAttr setObject:_publicTag forKey:(id)kSecAttrApplicationTag];
        // 私钥字典，其他参数SecKey.h
        [privateKeyAttr setObject:[NSNumber numberWithBool:YES] forKey:(id)kSecAttrIsPermanent];
        [privateKeyAttr setObject:_privateTag forKey:(id)kSecAttrApplicationTag];
        // Set attributes to top level dictionary.
        [keyPairAttr setObject:publicKeyAttr forKey:(id)kSecPublicKeyAttrs];
        [keyPairAttr setObject:privateKeyAttr forKey:(id)kSecPrivateKeyAttrs];

        // 同步方法生成秘钥
        OSStatus status = noErr;
        status = SecKeyGeneratePair((CFDictionaryRef)keyPairAttr, publicKeyRef, privateKeyRef);
        if (status == noErr && publicKeyRef != NULL && privateKeyRef != NULL) {
            return YES;
        } else {
            NSLog(@"Something really bad went wrong with generating the key pair.");
        }
    }
    return NO;
}

/**
 公钥加密
 */
- (NSString *)secKeyEncryptWithPublicKey:(SecKeyRef)publicKey plainString:(NSString *)plainString {
    // 原数据
    NSData *plainData = [plainString dataUsingEncoding:NSUTF8StringEncoding];
    NSMutableData *encryptData = [NSMutableData data];
    // 循环分段加密，每次最多加密公钥长度，其中还需要kSecPaddingPKCS1填充，-11位
    size_t cipherBufferSize = SecKeyGetBlockSize(publicKey);
    NSUInteger totalSize = plainData.length;
    // 分段数量
    NSUInteger blockSize = cipherBufferSize - 11;
    double blockCount = ceil(totalSize * 1.f / blockSize);
    for (NSInteger i = 0; i < blockCount; i++) {
        // 取出当前分段数据
        NSData *blockData;
        if (i < (blockCount - 1)) {
            blockData = [plainData subdataWithRange:NSMakeRange(i * blockSize, blockSize)];
        } else {
            blockData = [plainData subdataWithRange:NSMakeRange(i * blockSize, totalSize - i * blockSize)];
        }
        // 申请缓冲区内存，使用公钥长度申请
        uint8_t *cipherBuffer = malloc(cipherBufferSize * sizeof(uint8_t));
        memset((void *)cipherBuffer, 0x0, cipherBufferSize);
        // 加密
        OSStatus sanityCheck = noErr;
        sanityCheck = SecKeyEncrypt(publicKey, kSecPaddingPKCS1, (const uint8_t *)[blockData bytes], [blockData length], cipherBuffer, &cipherBufferSize);
        if (sanityCheck == noErr) {
            // Build up cipher text blob.
            NSData *cipher = [NSData dataWithBytes:(const void *)cipherBuffer length:(NSUInteger)cipherBufferSize];
            [encryptData appendData:cipher];
            if (cipherBuffer) {
                free(cipherBuffer);
            }
        } else {
            // 加密失败
            if (cipherBuffer) {
                free(cipherBuffer);
            }
            return nil;
        }
    }
    // 转base64
    NSString *encryptString = [encryptData base64EncodedStringWithOptions:0];
    return encryptString;
}

/**
 私钥解密
 */
- (NSString *)secKeyDecryptWithPrivateKey:(SecKeyRef)privateKey encryptString:(NSString *)encryptString {
    // 原数据
    NSData *encryptData = [[NSData alloc] initWithBase64EncodedString:encryptString options:NSDataBase64DecodingIgnoreUnknownCharacters];
    NSMutableData *outputPlainData = [NSMutableData data];
    // 循环分段解密，每次最多解密私钥长度
    size_t cipherBufferSize = SecKeyGetBlockSize(privateKey);
    NSUInteger totalSize = encryptData.length;
    // 分段数量
    NSUInteger blockSize = cipherBufferSize;
    double blockCount = ceil(totalSize * 1.f / cipherBufferSize);
    for (int i = 0; i < blockCount; i++) {
        // 取出当前分段数据
        NSData *blockData;
        if (i < (blockCount - 1)) {
            blockData = [encryptData subdataWithRange:NSMakeRange(i * blockSize, blockSize)];
        } else {
            blockData = [encryptData subdataWithRange:NSMakeRange(i * blockSize, totalSize - i * blockSize)];
        }
        // 申请当前分段加密占用内存
        uint8_t *keyBuffer = malloc(cipherBufferSize * sizeof(uint8_t));
        memset((void *)keyBuffer, 0x0, cipherBufferSize);
        // 解密
        OSStatus status = noErr;
        status = SecKeyDecrypt(privateKey, kSecPaddingPKCS1, (const uint8_t *)[blockData bytes], [blockData length], keyBuffer, &cipherBufferSize);
        if (status == noErr) {
            NSData *key = [NSData dataWithBytes:(const void *)keyBuffer length:(NSUInteger)cipherBufferSize];
            [outputPlainData appendData:key];
            if (keyBuffer) {
                free(keyBuffer);
            }
        } else {
            if (keyBuffer) {
                free(keyBuffer);
            }
            return nil;
        }
    }

    NSString *outputPlainString = [[NSString alloc] initWithData:outputPlainData encoding:NSUTF8StringEncoding];
    return outputPlainString;
}

/**
 私钥签名
 */
- (NSString *)signWithPrivateSecKey:(SecKeyRef)privateKey secPadding:(SecPadding)secPadding plainString:(NSString *)plainString {
#if __IPHONE_OS_VERSION_MAX_ALLOWED < __IPHONE_10_0
    // 原数据
    NSData *plainData = [plainString dataUsingEncoding:NSUTF8StringEncoding];
    // 哈希值算法，md5、sha1、sha224、sha256、sha384、sha512
    NSData *hashData = nil;
    NSInteger digest_length = 0;
    switch (secPadding) {
            case kSecPaddingPKCS1MD5:
        {
            digest_length = CC_MD5_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_MD5_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_MD5_DIGEST_LENGTH);
            // Initialize the context.
            CC_MD5_CTX ctx;
            CC_MD5_Init(&ctx);
            // Perform the hash.
            CC_MD5_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_MD5_Final(hashBytes, &ctx);
            // Build up the SHAMD5 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_MD5_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA1:
        {
            digest_length = CC_SHA1_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA1_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA1_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA1_CTX ctx;
            CC_SHA1_Init(&ctx);
            // Perform the hash.
            CC_SHA1_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA1_Final(hashBytes, &ctx);
            // Build up the SHA1 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA1_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA224:
        {
            digest_length = CC_SHA224_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA224_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA224_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA256_CTX ctx;
            CC_SHA224_Init(&ctx);
            // Perform the hash.
            CC_SHA224_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA224_Final(hashBytes, &ctx);
            // Build up the SHA224 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA224_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA256:
        {
            digest_length = CC_SHA256_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA256_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA256_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA256_CTX ctx;
            CC_SHA256_Init(&ctx);
            // Perform the hash.
            CC_SHA256_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA256_Final(hashBytes, &ctx);
            // Build up the SHA256 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA256_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA384:
        {
            digest_length = CC_SHA384_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA384_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA384_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA512_CTX ctx;
            CC_SHA384_Init(&ctx);
            // Perform the hash.
            CC_SHA384_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA384_Final(hashBytes, &ctx);
            // Build up the SHA384 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA384_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA512:
        {
            digest_length = CC_SHA512_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA512_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA512_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA512_CTX ctx;
            CC_SHA512_Init(&ctx);
            // Perform the hash.
            CC_SHA512_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA512_Final(hashBytes, &ctx);
            // Build up the SHA512 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA512_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;

        default:
            break;
    }
    if (hashData) {
        size_t signedHashBytesSize = SecKeyGetBlockSize(privateKey);
        // Malloc a buffer to hold signature.
        uint8_t *signedHashBytes = malloc(signedHashBytesSize * sizeof(uint8_t));
        memset((void *)signedHashBytes, 0x0, signedHashBytesSize);
        // Sign the hash Data.
        OSStatus sanityCheck = noErr;
        sanityCheck = SecKeyRawSign(privateKey, secPadding, (const uint8_t *)[hashData bytes], digest_length, (uint8_t *)signedHashBytes, &signedHashBytesSize);
        if (sanityCheck == noErr) {
            // Build up signed blob.
            NSData *signedHash = [NSData dataWithBytes:(const void *)signedHashBytes length:(NSUInteger)signedHashBytesSize];
            if (signedHashBytes) {
                free(signedHashBytes);
            }
            NSString *signString = [signedHash base64EncodedStringWithOptions:0];
            return signString;
        } else {
            if (signedHashBytes) {
                free(signedHashBytes);
            }
            return nil;
        }
    } else {
        return nil;
    }
#else
    // iOS10以上系统可以使用新的方法
    // 原数据
    NSData *plainData = [plainString dataUsingEncoding:NSUTF8StringEncoding];
    SecKeyAlgorithm Algorithm = nil;
    switch (secPadding) {
            case kSecPaddingPKCS1SHA1:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA1;
        }
            break;
            case kSecPaddingPKCS1SHA224:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA224;
        }
            break;
            case kSecPaddingPKCS1SHA256:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA256;
        }
            break;
            case kSecPaddingPKCS1SHA384:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA384;
        }
            break;
            case kSecPaddingPKCS1SHA512:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA512;
        }
            break;

        default:
            break;
    }
    if (Algorithm) {
        NSError *error = nil;
        CFErrorRef ee = (__bridge CFErrorRef)error;
        CFDataRef dataRef = SecKeyCreateSignature(privateKey, kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA1, (CFDataRef)plainData, &ee);
        if (error) {
            return nil;
        } else {
            NSData *signature = CFBridgingRelease(dataRef);
            NSString *signString = [signature base64EncodedStringWithOptions:0];
            return signString;
        }
    } else {
        return nil;
    }
#endif
}

/**
 公钥验证签名
 */
- (BOOL)verifyWithPublicSecKey:(SecKeyRef)publicKey secPadding:(SecPadding)secPadding plainString:(NSString *)plainString signString:(NSString *)signString {
#if __IPHONE_OS_VERSION_MAX_ALLOWED < __IPHONE_10_0
    // 原数据
    NSData *plainData = [plainString dataUsingEncoding:NSUTF8StringEncoding];
    // 哈希值算法，md5、sha1、sha224、sha256、sha384、sha512
    NSData *hashData = nil;
    NSInteger digest_length = 0;
    switch (secPadding) {
            case kSecPaddingPKCS1MD5:
        {
            digest_length = CC_MD5_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_MD5_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_MD5_DIGEST_LENGTH);
            // Initialize the context.
            CC_MD5_CTX ctx;
            CC_MD5_Init(&ctx);
            // Perform the hash.
            CC_MD5_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_MD5_Final(hashBytes, &ctx);
            // Build up the SHAMD5 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_MD5_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA1:
        {
            digest_length = CC_SHA1_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA1_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA1_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA1_CTX ctx;
            CC_SHA1_Init(&ctx);
            // Perform the hash.
            CC_SHA1_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA1_Final(hashBytes, &ctx);
            // Build up the SHA1 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA1_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA224:
        {
            digest_length = CC_SHA224_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA224_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA224_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA256_CTX ctx;
            CC_SHA224_Init(&ctx);
            // Perform the hash.
            CC_SHA224_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA224_Final(hashBytes, &ctx);
            // Build up the SHA224 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA224_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA256:
        {
            digest_length = CC_SHA256_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA256_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA256_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA256_CTX ctx;
            CC_SHA256_Init(&ctx);
            // Perform the hash.
            CC_SHA256_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA256_Final(hashBytes, &ctx);
            // Build up the SHA256 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA256_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA384:
        {
            digest_length = CC_SHA384_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA384_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA384_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA512_CTX ctx;
            CC_SHA384_Init(&ctx);
            // Perform the hash.
            CC_SHA384_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA384_Final(hashBytes, &ctx);
            // Build up the SHA384 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA384_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;
            case kSecPaddingPKCS1SHA512:
        {
            digest_length = CC_SHA512_DIGEST_LENGTH;
            // Malloc a buffer to hold hash.
            uint8_t *hashBytes = malloc(CC_SHA512_DIGEST_LENGTH * sizeof(uint8_t));
            memset((void *)hashBytes, 0x0, CC_SHA512_DIGEST_LENGTH);
            // Initialize the context.
            CC_SHA512_CTX ctx;
            CC_SHA512_Init(&ctx);
            // Perform the hash.
            CC_SHA512_Update(&ctx, (void *)[plainData bytes], (CC_LONG)[plainData length]);
            // Finalize the output.
            CC_SHA512_Final(hashBytes, &ctx);
            // Build up the SHA512 blob.
            hashData = [NSData dataWithBytes:(const void *)hashBytes length:(NSUInteger)CC_SHA512_DIGEST_LENGTH];
            if (hashBytes) {
                free(hashBytes);
            }
        }
            break;

        default:
            break;
    }
    if (hashData) {
        // 签名数据
        NSData *signData = [[NSData alloc] initWithBase64EncodedString:signString options:NSDataBase64DecodingIgnoreUnknownCharacters];
        // Get the size of the assymetric block.
        size_t signedHashBytesSize = SecKeyGetBlockSize(publicKey);
        OSStatus sanityCheck = noErr;
        sanityCheck = SecKeyRawVerify(publicKey, secPadding, (const uint8_t *)[hashData bytes], digest_length, (const uint8_t *)[signData bytes], signedHashBytesSize);
        if (sanityCheck == noErr) {
            return YES;
        } else {
            return NO;
        }
    } else {
        return NO;
    }
#else
    // iOS10以上系统可以使用新的方法
    // 原数据
    NSData *plainData = [plainString dataUsingEncoding:NSUTF8StringEncoding];
    // 签名数据
    NSData *signData = [[NSData alloc] initWithBase64EncodedString:signString options:NSDataBase64DecodingIgnoreUnknownCharacters];
    SecKeyAlgorithm Algorithm = nil;
    switch (secPadding) {
            case kSecPaddingPKCS1SHA1:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA1;
        }
            break;
            case kSecPaddingPKCS1SHA224:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA224;
        }
            break;
            case kSecPaddingPKCS1SHA256:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA256;
        }
            break;
            case kSecPaddingPKCS1SHA384:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA384;
        }
            break;
            case kSecPaddingPKCS1SHA512:
        {
            Algorithm = kSecKeyAlgorithmRSASignatureMessagePKCS1v15SHA512;
        }
            break;

        default:
            break;
    }
    if (Algorithm) {
        NSError *error = nil;
        CFErrorRef ee = (__bridge CFErrorRef)error;
        Boolean boolen = SecKeyVerifySignature(publicKey, Algorithm, (CFDataRef)plainData, (CFDataRef)signData, &ee);
        if (error) {
            return NO;
        } else {
            if (boolen == TRUE) {
                return YES;
            } else {
                return NO;
            }
        }
    } else {
        return NO;
    }
#endif
}

#if __IPHONE_OS_VERSION_MAX_ALLOWED >= __IPHONE_10_0

// SecKeyRef转base64
- (NSString *)base64StringFromSecKey:(SecKeyRef)secKey {
    NSData *keyData = (NSData *)CFBridgingRelease(SecKeyCopyExternalRepresentation(secKey, NULL));
    NSString *base64 = [keyData base64EncodedStringWithOptions:0];
    return base64;
}

// base64转SecKeyRef
- (SecKeyRef)publicSecKeyFromBase64String:(NSString *)keyString {
    NSData *keyData = [[NSData alloc] initWithBase64EncodedString:keyString options:NSDataBase64DecodingIgnoreUnknownCharacters];

    NSMutableDictionary *options = [NSMutableDictionary dictionary];
    options[(__bridge id)kSecAttrKeyType] = (__bridge id) kSecAttrKeyTypeRSA;
    options[(__bridge id)kSecAttrKeyClass] = (__bridge id) kSecAttrKeyClassPublic;

    NSError *error = nil;
    CFErrorRef ee = (__bridge CFErrorRef)error;
    SecKeyRef ref = SecKeyCreateWithData((__bridge CFDataRef)keyData, (__bridge CFDictionaryRef)options, &ee);
    if (error) {
        NSLog(@"%@", error.description);
        return nil;
    }
    return ref;
}

- (SecKeyRef)privateSecKeyFromBase64String:(NSString *)keyString {
    NSData *keyData = [[NSData alloc] initWithBase64EncodedString:keyString options:NSDataBase64DecodingIgnoreUnknownCharacters];

    NSMutableDictionary *options = [NSMutableDictionary dictionary];
    options[(__bridge id)kSecAttrKeyType] = (__bridge id) kSecAttrKeyTypeRSA;
    options[(__bridge id)kSecAttrKeyClass] = (__bridge id) kSecAttrKeyClassPrivate;

    NSError *error = nil;
    CFErrorRef ee = (__bridge CFErrorRef)error;
    SecKeyRef ref = SecKeyCreateWithData((__bridge CFDataRef)keyData, (__bridge CFDictionaryRef)options, &ee);
    if (error) {
        NSLog(@"%@", error.description);
        return nil;
    }
    return ref;
}

#endif

@end

调用示例：

#import "ViewController.h"
#import "SecKeyWrapper.h"

@interface ViewController () {
    SecKeyRef _publicKeyRef;
    SecKeyRef _privateKeyRef;
}
@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    // Do any additional setup after loading the view.

    _publicKeyRef = NULL;
    _privateKeyRef = NULL;
    SecKeyWrapper *secKeyWrapper = [SecKeyWrapper shareInstance];
    [secKeyWrapper generateKeyPair:1024 publicKey:&_publicKeyRef privateKey:&_privateKeyRef];

    NSString *publicKeyBase64 = [secKeyWrapper base64StringFromSecKey:_publicKeyRef];
    NSLog(@"公钥：%@", publicKeyBase64);
    NSString *privateKeyBase64 = [secKeyWrapper base64StringFromSecKey:_privateKeyRef];
    NSLog(@"私钥：%@", privateKeyBase64);

    NSString *plainString = @"123qweQWE测试@#%&*";

    NSString *encryptedString = [secKeyWrapper secKeyEncryptWithPublicKey:_publicKeyRef plainString:plainString];
    NSLog(@"%@", [NSString stringWithFormat:@"公钥加密：%@", encryptedString]);

    NSString *outputPlainString = [secKeyWrapper secKeyDecryptWithPrivateKey:_privateKeyRef encryptString:encryptedString];
    NSLog(@"%@", [NSString stringWithFormat:@"私钥解密：%@", outputPlainString]);

    NSString *signString = [secKeyWrapper signWithPrivateSecKey:_privateKeyRef secPadding:kSecPaddingPKCS1SHA1 plainString:plainString];
    NSLog(@"%@", [NSString stringWithFormat:@"私钥签名：%@", signString]);

    BOOL verify = [secKeyWrapper verifyWithPublicSecKey:_publicKeyRef secPadding:kSecPaddingPKCS1SHA1 plainString:plainString signString:signString];
    NSLog(@"%@", [NSString stringWithFormat:@"验证 %@", verify ? @"通过" : @"不通过"]);
}

@end

3、一些概念

1. 公钥加密，私钥解密

对于二进制数据，加密时为了确定内容实际长度，所以在末尾需要用约定好的字符进行标记结尾，防止被内存中的垃圾数据等影响，这就是padding，PKCS1格式秘钥建议使用的padding为11字节

以1024位秘钥为例，公钥加密时支持最大字节数：证书位数/8-11=117，解密时支持最大字节数：证书位数/8=128

2. 私钥签名，公钥验签

私钥签名，公钥验签是为了对数据进行验证，确保数据没有被篡改

需要使用哈希值算法获取原数据的哈希值，哈希值特点是唯一性，一旦原数据发生变化，哈希值也会变化，再使用私钥对哈希值进行摘要签名，通过公钥验证后即可确保数据的保密性

4、遗留的问题

在使用Security生成秘钥的过程中，发现一个问题：

使用Security生成公钥私钥，其中私钥转成base64字符串后，可以使用Openssl的方法读取私钥，并使用Openssl的方法进行其他操作，但是公钥长度格式不对，无法使用Openssl的方法读取使用，如果要发送公钥给第三方，只能用Openssl的方法读取到公钥并发送，正常使用过程中，Security的公钥只能给Security自己的方法使用，对加密解密的功能没有影响，暂时无法找到合理的解释。

另外，Security的部分方法在iOS 10.0后的系统才会生效，也没有找到以前以前系统中提供其他类似的方法，据网上资料了解，Openssl生成秘钥的方法有失败的可能，但是实际测试没有出现过，可能是测试数量不够多
